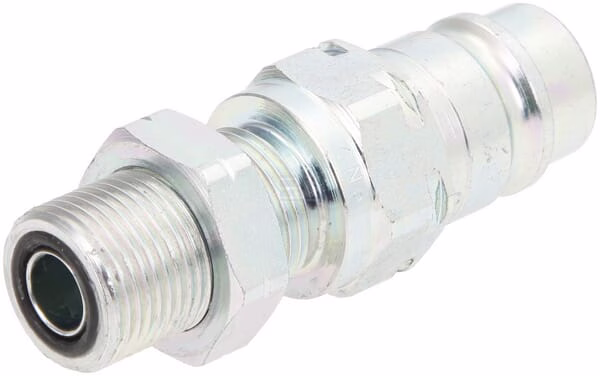

Acoplamiento rápido CNV M, rosca M ORFS 13/16″
14,29 € IVA incl.11,81 € sin IVA
Comprobando disponibilidad en tiempo real…
Características técnicas
- Número de artículo: CNV081212SAEM
- Marca: Faster
- Serie: CNV
- Tipo de válvula: Válvula de disco
- Conexión 1, tipo: Acoplamiento rápido
- Conexión 1, tipo – macho/hembra: Macho
- Tamaño del cuerpo: 1/2 in
- Conexión 2, tipo: Rosca
- Conexión 2, tipo – macho/hembra: Macho
- Conexión 2, diámetro de la rosca: 13/16 in
- Conexión no. 2, hilos por pulgada.: 16
- Conexión 2, tipo de rosca: ORFS
- Caudal a 2 bar: 75 l/min
- Presión de trabajo: 250 BAR
- Conexión bajo presión: No
- Breakaway function: No
- Decompression valve: No
- Tipo de bloqueo conexión rápida: Bolas radiales
- Male probe diameter (mm) (mm): 20,5 mm
- Diámetro exterior: 30 mm
- Burst Pressure: 1000 BAR
- Norma ISO: 7241-A
- Min Working Temperature: -25 °C
- Max Working Temperature: 125 °C
- Ancho de llave 1: 27 mm
- Código de tamaño: BG 2
- Longitud total: 81 mm
- Material del sellado: Caucho de nitrilo
- Material: Acero
- Tratamiento de superficie: Zincado
- Intercambiable con: Faster ANV, Vosswinkel SKP
- Peso: 173,7 g
- Conexión 1, tipo de rosca: UN
- Diámetro de conexión nº 1: 20,5 mm
- Tamaño hexagonal de conexión nº 1: 27, 27 mm
- Forma: Recto
- Tipo de conexión nº 1 Acoplamiento rápido
- Tipo conexión nº 1 – macho/hembra Macho
- Tipo de rosca conexión no. 1 UN
- Tamaño hexagonal de conexión nº 1 1,06in
- Tamaño hexagonal de conexión nº 1 27mm
- Tamaño del cuerpo 12,5mm
- Tipo de conexión no. 2 Rosca
- Tipo de conexión no. 2 – macho/hembra Macho
- Diámetro de rosca conexión no. 2 13/16in
- Tipo de rosca conexión no. 2 ORFS
- Diámetro exterior 1,18in
- Longitud total 3,17in
- Tratamiento de superficie Cromado
- Temperatura máxima de trabajo 125°C
- Temperatura de trabajo mínima -25°C
- Tipo de funcionamiento conexión rápida Presione para conectar
- Material del sellado Caucho de nitrilo [NBR]
Propiedades
- Endurecido por inducción en puntos clave
- Manguito compatible: Faster CPV
Información técnica
- Acoplamiento mediante introducción del conector (manejo con una sola mano)
Tabla de compatibilidad (72 modelos)
| Marca / Modelo |
|---|
| Case IH |
| QUANTUM 100CL – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (06/23 – ) |
| QUANTUM 100CL – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (06/23 – ) |
| QUANTUM 100F – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (09/22 – ) |
| QUANTUM 100N – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (04/23 – ) |
| QUANTUM 100V – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (01/23 – ) |
| QUANTUM 110CL – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (06/23 – ) |
| QUANTUM 110CL – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (06/23 – ) |
| QUANTUM 110F – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (09/22 – ) |
| QUANTUM 110N – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (04/23 – ) |
| QUANTUM 110V – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (01/23 – ) |
| QUANTUM 120CL – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (06/23 – ) |
| QUANTUM 120CL – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (06/23 – ) |
| QUANTUM 120F – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (09/22 – ) |
| QUANTUM 120N – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (04/23 – ) |
| QUANTUM 120V – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (01/23 – ) |
| QUANTUM 80CL – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (06/23 – ) |
| QUANTUM 80CL – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (06/23 – ) |
| QUANTUM 80F – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (09/22 – ) |
| QUANTUM 80N – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (04/23 – ) |
| QUANTUM 80V – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (01/23 – ) |
| QUANTUM 90CL – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (06/23 – ) |
| QUANTUM 90CL – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (06/23 – ) |
| QUANTUM 90F – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (09/22 – ) |
| QUANTUM 90N – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (04/23 – ) |
| QUANTUM 90V – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (01/23 – ) |
| New Holland AG |
| T4.100F – SPECIAL LOW TRACTOR – L/CAB – NEXT GENERATION (11/21 – ) |
| T4.100F – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (11/21 – ) |
| T4.100F – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (07/22 – ) |
| T4.100LP – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (06/23 – ) |
| T4.100LP – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (06/23 – ) |
| T4.100N – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (04/22 – ) |
| T4.100N – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (04/23 – ) |
| T4.100V – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (04/22 – ) |
| T4.100V – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (01/23 – ) |
| T4.110F – SPECIAL LOW TRACTOR – L/CAB – NEXT GENERATION (11/21 – ) |
| T4.110F – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (11/21 – ) |
| T4.110F – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (07/22 – ) |
| T4.110LP – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (06/23 – ) |
| T4.110LP – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (06/23 – ) |
| T4.110N – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (04/22 – 10/22) |
| T4.110N – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (04/23 – ) |
| T4.110V – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (04/22 – ) |
| T4.110V – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (01/23 – ) |
| T4.120F – SPECIAL LOW TRACTOR – L/CAB – NEXT GENERATION (11/21 – ) |
| T4.120F – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (11/21 – ) |
| T4.120F – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (07/22 – ) |
| T4.120LP – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (06/23 – ) |
| T4.120LP – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (06/23 – ) |
| T4.120N – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (04/22 – 12/22) |
| T4.120N – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (04/23 – ) |
| T4.120V – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (04/22 – ) |
| T4.120V – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (01/23 – ) |
| T4.80F – SPECIAL LOW TRACTOR – L/CAB – NEXT GENERATION (11/21 – ) |
| T4.80F – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (11/21 – ) |
| T4.80F – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (07/22 – ) |
| T4.80LP – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (06/23 – ) |
| T4.80LP – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (06/23 – ) |
| T4.80N – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (04/22 – ) |
| T4.80N – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (04/23 – ) |
| T4.80V – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (04/22 – ) |
| T4.80V – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (01/23 – ) |
| T4.90F – SPECIAL LOW TRACTOR – L/CAB – NEXT GENERATION (11/21 – ) |
| T4.90F – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (11/21 – ) |
| T4.90F – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (07/22 – ) |
| T4.90LP – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (06/23 – ) |
| T4.90LP – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (06/23 – ) |
| T4.90N – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (04/22 – ) |
| T4.90N – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (04/23 – ) |
| T4.90V – SPECIAL TRACTOR – L/CAB – NEXT GENERATION (04/22 – ) |
| T4.90V – SPECIAL TRACTOR – W/CAB – NEXT GENERATION (01/23 – ) |
Compatible con 50 modelos
Este repuesto está validado por el fabricante para los siguientes tractores y maquinaria:
Case
- - IH QUANTUM 100CL - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (06/23 - )
- - IH QUANTUM 100CL - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (06/23 - )
- - IH QUANTUM 100F - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (09/22 - )
- - IH QUANTUM 100N - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (04/23 - )
- - IH QUANTUM 100V - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (01/23 - )
- - IH QUANTUM 110CL - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (06/23 - )
- - IH QUANTUM 110CL - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (06/23 - )
- - IH QUANTUM 110F - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (09/22 - )
- - IH QUANTUM 110N - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (04/23 - )
- - IH QUANTUM 110V - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (01/23 - )
- - IH QUANTUM 120CL - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (06/23 - )
- - IH QUANTUM 120CL - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (06/23 - )
- - IH QUANTUM 120F - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (09/22 - )
- - IH QUANTUM 120N - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (04/23 - )
- - IH QUANTUM 120V - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (01/23 - )
- - IH QUANTUM 80CL - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (06/23 - )
- - IH QUANTUM 80CL - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (06/23 - )
- - IH QUANTUM 80F - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (09/22 - )
- - IH QUANTUM 80N - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (04/23 - )
- - IH QUANTUM 80V - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (01/23 - )
- +5 más
New
- Holland T4.100F - SPECIAL LOW TRACTOR - L/CAB - NEXT GENERATION (11/21 - )
- Holland T4.100F - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (11/21 - )
- Holland T4.100F - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (07/22 - )
- Holland T4.100LP - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (06/23 - )
- Holland T4.100LP - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (06/23 - )
- Holland T4.100N - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (04/22 - )
- Holland T4.100N - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (04/23 - )
- Holland T4.100V - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (04/22 - )
- Holland T4.100V - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (01/23 - )
- Holland T4.110F - SPECIAL LOW TRACTOR - L/CAB - NEXT GENERATION (11/21 - )
- Holland T4.110F - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (11/21 - )
- Holland T4.110F - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (07/22 - )
- Holland T4.110LP - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (06/23 - )
- Holland T4.110LP - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (06/23 - )
- Holland T4.110N - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (04/22 - 10/22)
- Holland T4.110N - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (04/23 - )
- Holland T4.110V - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (04/22 - )
- Holland T4.110V - SPECIAL TRACTOR - W/CAB - NEXT GENERATION (01/23 - )
- Holland T4.120F - SPECIAL LOW TRACTOR - L/CAB - NEXT GENERATION (11/21 - )
- Holland T4.120F - SPECIAL TRACTOR - L/CAB - NEXT GENERATION (11/21 - )
- +5 más
