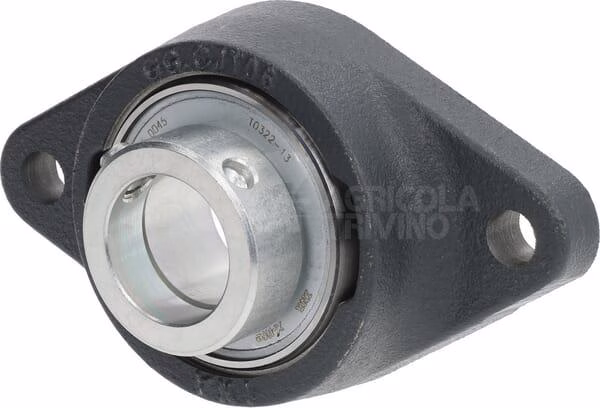

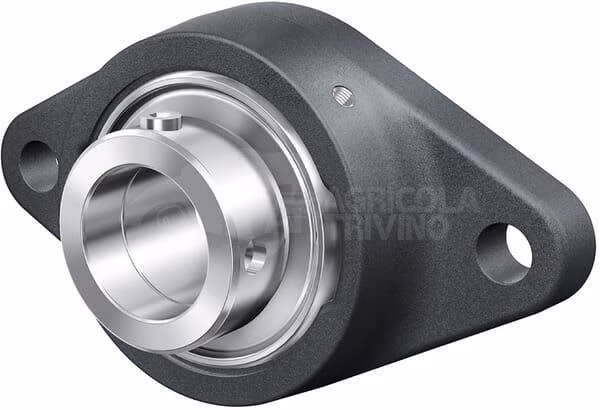

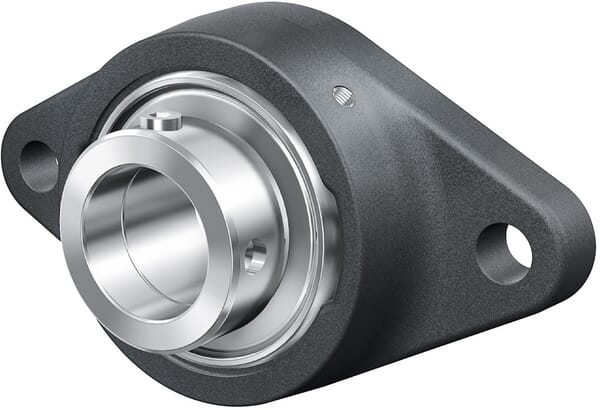

Palier ovalado PCJT con GRAE
48,90 €
Tipo de carcasa Brida ovalada
Diámetro interior del rodamiento 30mm
Consta de – Soporte de cojinete
– Anillo tensor
Longitud total 80mm
Ancho de la carcasa 142mm
Altura total 142mm
Altura de la carcasa 29mm
Ancho anillo interior del rodamiento 35,7mm
Espesor de la brida 12mm
Diámetro exterior del anillo de bloqueo 44mm
Distancia de las bolas de rodamiento al extremo del lado del bloqueo 20mm
Distancia de los agujeros de montaje 116,5mm
Diámetro de los agujeros de montaje 11,5mm
Número de orificios de montaje 2
Diámetro de rosca de la boquilla de engrase M6
Peso 0,83kg
Capacidad básica de carga radial estática 11300N
Capacidad básica de carga radial dinámica 20700N
Número original PCJT30-N
Fabricante Schaeffler
Información adicional *5810-Rodamientos INA-FAG
Número de artículo PCJT30
Unidad Cada ud. s/descripción
EAN 4012802837360
Marca INA
¿Lo has visto más barato? Mejoramos la oferta
Garantía Precio Justo Triviño®
Especificaciones
| Reemplazado por: PCJT30N SALF206TRInformación Adicional:Landini |
Tabla de compatibilidad (200 modelos)
| Marca / Modelo |
|---|
| Landini |
| Series 4 |
| 4-090 |
| 4-095 |
| 4-100 |
| 4-105 |
| 4-110 |
| Series 4 Small Range |
| 4-060 |
| 4-070 |
| 4-075 |
| 4-080 |
| Series 5-D Tier 4 |
| 100 (2013) |
| 5D100 Tier 4 (2013-) |
| 5D110 Tier 4 (2013-) |
| 5D90 |
| Series 5-H |
| 100H |
| 110H |
| 115H |
| 80H |
| 80H (2009) |
| 90H |
| 90H (2009) |
| Series 5-H T4i |
| 5-H 100H (2009-) |
| 5-H 110H (2009-) |
| 5-H 115H (2009-) |
| 5-H Tier 4 100 (2013-) |
| 5-H Tier 4 110 (2013-) |
| 5-H Tier 4 115 (2013-) |
| 5-H Tier 4 90 (2013-) |
| 5-H Tier 4i 5-090H (2014-) |
| 5-H Tier 4i 5-100H (2014-) |
| 5-H Tier 4i 5-110H (2014-) |
| 5-H Tier 4i 5-115H (2014-) |
| Series 6C Tier4 |
| 6C Tier 4 (2014-) 6.130C |
| Series Ghibli |
| Ghibli 105 (2004-2006) |
| Ghibli 85 (2004-2006) |
| Ghibli 95 (2004-2006) |
| Series Globalfarm |
| Globalfarm 100 (2007-) |
| Globalfarm 105 (2007-) |
| Globalfarm 90 (2007-) |
| Globalfarm 95 (2007-) |
| Series Globalfarm Tier 3 |
| Globalfarm 100 Tier 3 (2011-2015) |
| Globalfarm 105 Tier 3 (2011-2015) |
| Globalfarm 80 Tier 3 (2011-2015) |
| Globalfarm 90 Tier 3 (2011-2015) |
| Series Powerfarm Meccanicco Tier 3 |
| 110 (2013) |
| Series Rex Tier 2 |
| 90 (2013) |
| McCormick |
| Series B-Max |
| B-Max 100 |
| B-Max 100 (2007-2015) |
| B-Max 105 |
| B-Max 105 (2007-2015) |
| B-Max 90 |
| B-Max 90 (2007-2015) |
| B-Max 95 |
| B-Max 95 (2007-2015) |
| B-Max Tier 3 100 (2011-2013) |
| B-Max Tier 3 105 (2011-2013) |
| B-Max Tier 3 80 (2011-2015) |
| B-Max Tier 3 90 (2011-2015) |
| Tier 3 B-Max Tier 3 100 |
| Tier 3 B-Max Tier 3 80 |
| Tier 3 B-Max Tier 3 90 |
| Tier 3B-Max Tier 3 105 |
| Series T |
| T100 Max (2009) |
| T110 Max (2009) |
| T115H Max (2009) |
| T80 |
| T80 Max (2009) |
| T90 |
| T90 Max (2009) |
| Series X |
| X4.20 Small Range (2015) |
| X4.25 Small Range (2015) |
| X4.30 Small Range (2015) |
| X4.35 Small Range (2015) |
| X4.40 Small Range (2015) |
| X4.45 Small Range (2015) |
| X4.50 (2014) |
| X4.55 (2014) |
| X4.60 (2014) |
| X4.70 (2014) |
| X5.20 T4i (2014-2019) |
| X5.30 R4i (2014-2019) |
| X5.40 T4i (2014-2019) |
| X5.50 T4i (2014-2019) |
| X6.430 Tier 4 (2014-2019) |
| X6.440 Tier 4 (2014-2019) |
| Reemplazado por: PCJT30N SALF206TRInformación Adicional:Landini |
| Series 4 |
| 4-090 |
| 4-095 |
| 4-100 |
| 4-105 |
| 4-110 |
| Series 4 Small Range |
| 4-060 |
| 4-070 |
| 4-075 |
| 4-080 |
| Series 5-D Tier 4 |
| 100 (2013) |
| 5D100 Tier 4 (2013-) |
| 5D110 Tier 4 (2013-) |
| 5D90 |
| Series 5-H |
| 100H |
| 110H |
| 115H |
| 80H |
| 80H (2009) |
| 90H |
| 90H (2009) |
| Series 5-H T4i |
| 5-H 100H (2009-) |
| 5-H 110H (2009-) |
| 5-H 115H (2009-) |
| 5-H Tier 4 100 (2013-) |
| 5-H Tier 4 110 (2013-) |
| 5-H Tier 4 115 (2013-) |
| 5-H Tier 4 90 (2013-) |
| 5-H Tier 4i 5-090H (2014-) |
| 5-H Tier 4i 5-100H (2014-) |
| 5-H Tier 4i 5-110H (2014-) |
| 5-H Tier 4i 5-115H (2014-) |
| Series 6C Tier4 |
| 6C Tier 4 (2014-) 6.130C |
| Series Ghibli |
| Ghibli 105 (2004-2006) |
| Ghibli 85 (2004-2006) |
| Ghibli 95 (2004-2006) |
| Series Globalfarm |
| Globalfarm 100 (2007-) |
| Globalfarm 105 (2007-) |
| Globalfarm 90 (2007-) |
| Globalfarm 95 (2007-) |
| Series Globalfarm Tier 3 |
| Globalfarm 100 Tier 3 (2011-2015) |
| Globalfarm 105 Tier 3 (2011-2015) |
| Globalfarm 80 Tier 3 (2011-2015) |
| Globalfarm 90 Tier 3 (2011-2015) |
| Series Powerfarm Meccanicco Tier 3 |
| 110 (2013) |
| Series Rex Tier 2 |
| 90 (2013) |
| McCormick |
| Series B-Max |
| B-Max 100 |
| B-Max 100 (2007-2015) |
| B-Max 105 |
| B-Max 105 (2007-2015) |
| B-Max 90 |
| B-Max 90 (2007-2015) |
| B-Max 95 |
| B-Max 95 (2007-2015) |
| B-Max Tier 3 100 (2011-2013) |
| B-Max Tier 3 105 (2011-2013) |
| B-Max Tier 3 80 (2011-2015) |
| B-Max Tier 3 90 (2011-2015) |
| Tier 3 B-Max Tier 3 100 |
| Tier 3 B-Max Tier 3 80 |
| Tier 3 B-Max Tier 3 90 |
| Tier 3B-Max Tier 3 105 |
| Series T |
| T100 Max (2009) |
| T110 Max (2009) |
| T115H Max (2009) |
| T80 |
| T80 Max (2009) |
| T90 |
| T90 Max (2009) |
| Series X |
| X4.20 Small Range (2015) |
| X4.25 Small Range (2015) |
| X4.30 Small Range (2015) |
| X4.35 Small Range (2015) |
| X4.40 Small Range (2015) |
| X4.45 Small Range (2015) |
| X4.50 (2014) |
| X4.55 (2014) |
| X4.60 (2014) |
| X4.70 (2014) |
| X5.20 T4i (2014-2019) |
| X5.30 R4i (2014-2019) |
| X5.40 T4i (2014-2019) |
| X5.50 T4i (2014-2019) |
| X6.430 Tier 4 (2014-2019) |
| X6.440 Tier 4 (2014-2019) Reemplazado por: PCJT30N SALF206TR |
Compatible con 50 modelos
Este repuesto está validado por el fabricante para los siguientes tractores y maquinaria:
Landini
- Series 4 4-090
- Series 4 4-095
- Series 4 4-100
- Series 4 4-105
- Series 4 4-110
- Series 4 Small Range 4-060
- Series 4 Small Range 4-070
- Series 4 Small Range 4-075
- Series 4 Small Range 4-080
- Series 5-D Tier 4 100 (2013)
- Series 5-D Tier 4 5D100 Tier 4 (2013-)
- Series 5-D Tier 4 5D110 Tier 4 (2013-)
- Series 5-D Tier 4 5D90
- Series 5-H 100H
- Series 5-H 110H
- Series 5-H 115H
- Series 5-H 80H
- Series 5-H 80H (2009)
- Series 5-H 90H
- Series 5-H 90H (2009)
- +25 más
McCormick
- Series B-Max B-Max 100
- Series B-Max B-Max 100 (2007-2015)
- Series B-Max B-Max 105
- Series B-Max B-Max 105 (2007-2015)
- Series B-Max B-Max 90
