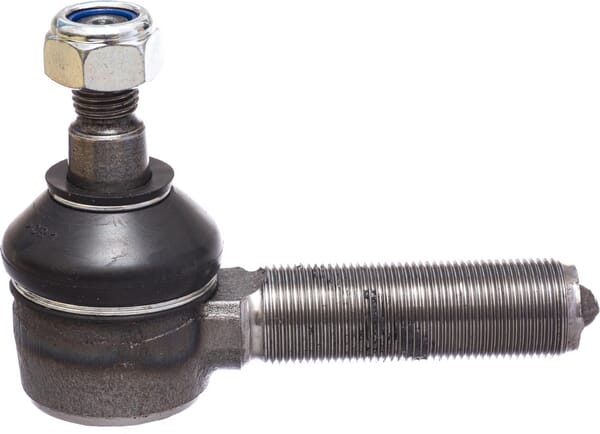

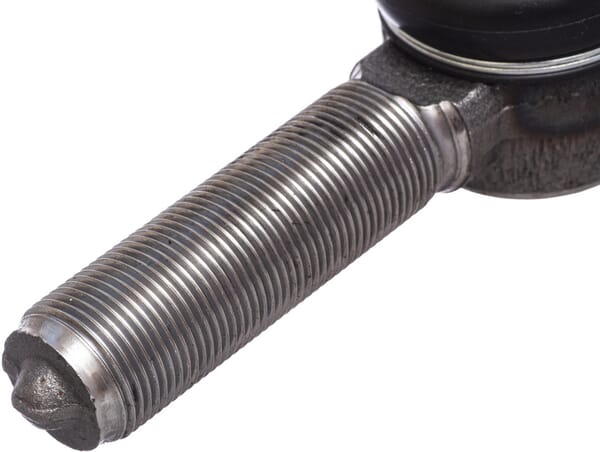

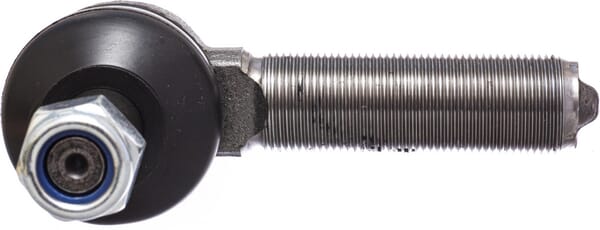

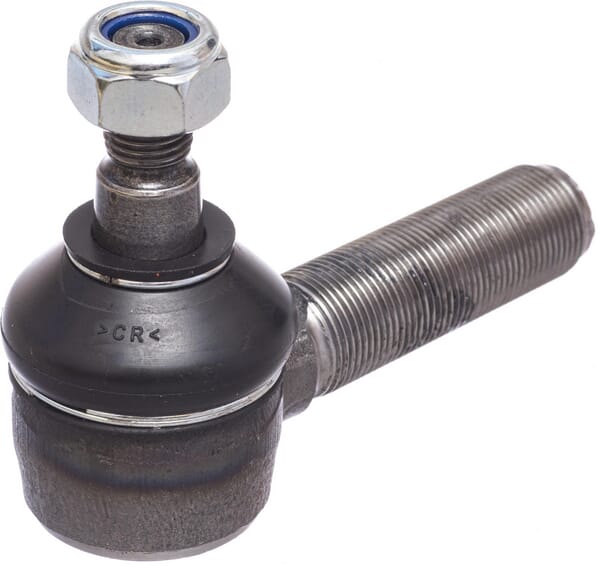

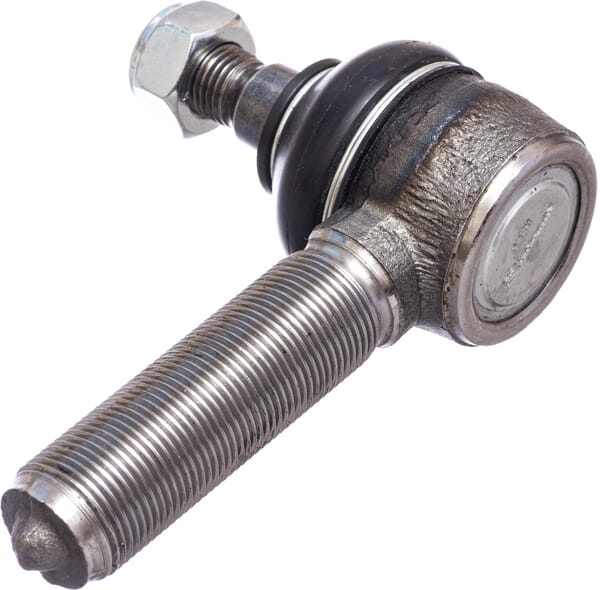

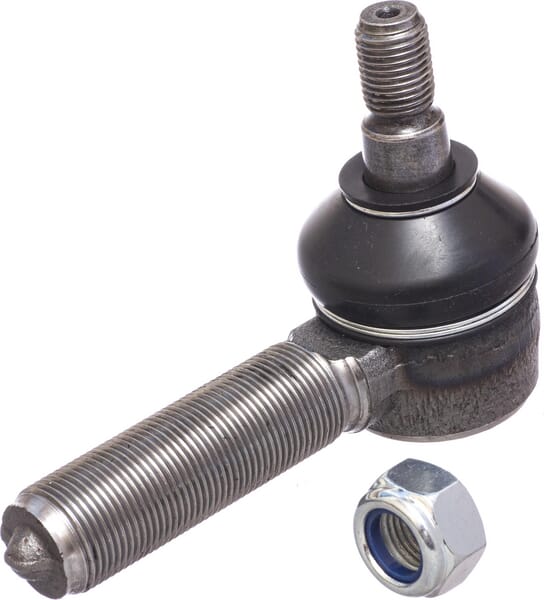

Rótula de dirección
24,58 € IVA incl.
Comprobando disponibilidad en tiempo real…
Características técnicas
- Número de artículo: SHP243KR
- EAN: 8719607186452
- Longitud de trabajo: 100 mm
- Tipo de rosca – extremo (rueda): Métrico
- Paso de rosca – lado vástago: Métrico
- Diámetro mínimo de conexión: 16,2 mm
- Diámetro máximo de conexión: 18,3 mm
- Diámetro de rosca – extremo (rueda) (métrico): M14
- Diámetro de rosca – lado varilla: M22
- Sentido de rosca – lado varilla: Rosca a derechas
- Dirección de roscado – extremo (rueda): Rosca a derechas
- Longitud extremo cono: 21 mm
- Longitud total: 100 mm
- Ancho de cabeza: 44 mm
- Longitud de rosca – lado vástago: 68 mm
- Longitud de rosca – extremo (rueda) (mm): 21,5 mm
- Paso de rosca – lado extremo (rueda) (mm): 1.50 mm
- Paso de rosca – lado vástago 1.50mm
Especificaciones
| Reemplazado por: | 13543454N 3141530R91 SHP419KR VPJ3111Información Adicional:DEUTZ-FAHR |
Tabla de compatibilidad (224 modelos)
| Marca / Modelo |
|---|
| Case – IH |
| Series 33 |
| 433 |
| 533 |
| 633 |
| 733 |
| 833 |
| Series 40 |
| 440 |
| 540 |
| 640 |
| 740 |
| Series 43 44 45 |
| 644 |
| 743 / 743XL |
| 744 |
| 745 / 745XL |
| 844 |
| 844S |
| 844XL |
| Series 46 |
| 1046 |
| 1246 |
| 946 |
| Series International / McCormick 523 -> 834 |
| 553 |
| 654 |
| 724 |
| 824 |
| DEUTZ-FAHR |
| Series Agrofarm |
| Agrofarm 100 Sn.->D14S934WVT5001 |
| Series Agrolux |
| Agrolux 80 Sn.->D13P774AVT1001 |
| Agrolux 90 Sn.->D13P874AVT1001 |
| Series Agroplus |
| Agroplus 100 Sn.->D11S016WVT1001 |
| Agroplus 75 Sn.->D11S764WVT1001 |
| Agroplus 85 Sn.->D11S864WVT1001 |
| Agroplus 95 Sn.->D11S934WVT1001 |
| Hürlimann |
| Series H 345 -> H 355 |
| H 356 |
| H 358 |
| H 466 |
| H 468 |
| H 476 |
| H 478 |
| H 486 Turbo |
| H 488 Turbo |
| H478.4 |
| Series H Club |
| H 358.4 Club |
| H 468.4 Club |
| Series H Elite |
| H 4105 Elite |
| Series H Prestige |
| H 358 Prestige |
| H 468 Prestige |
| H 478 Prestige |
| H 488 Prestige Turbo |
| Series XT |
| XT 908 |
| XT 909 |
| XT 910.4 |
| XT 910.6 |
| Lamborghini |
| Series 573-60 -> 574-60 |
| 573-60 N |
| 574-60 N |
| Series 674-70 -> 874-90 |
| 674-70 |
| 774-80 |
| 874-90 Turbo |
| Series Cross |
| Cross 574-60 |
| Cross 674-70 |
| Series Formula |
| Formula 105 |
| Series Grand Prix |
| Grand Prix 674-70 |
| Grand Prix 774-80 |
| Grand Prix 874-90 Turbo |
| Series Premium |
| Premium 1050 |
| Premium 1060 |
| Premium 850 |
| Series R 4 |
| R 4.95 |
| Same |
| Series Antares |
| Antares 100 |
| Series Centauro |
| Centauro 60 |
| Series Centurion |
| Centurion 75 Special |
| Series Corsaro |
| Corsaro 70 Synchro |
| Series Explorer I |
| Explorer I 55 |
| Explorer I 60 |
| Explorer I 65 |
| Explorer I 70 |
| Explorer I 75 |
| Explorer I 80 |
| Explorer I 90 Turbo |
| Series Explorer II |
| Explorer II 60 |
| Explorer II 70 |
| Explorer II 80 |
| Explorer II 90 Turbo |
| Series Explorer Special |
| Explorer 80 Special Sn.>15000 |
| Series Explorer T-TB |
| Explorer 95T |
| Series Frutteto³ S |
| Frutteto³ S100 ACTIVEDRIVESn.>ZKDP5302W0TS01001 |
| Series Leone |
| Leone 70 |
| Leone 75 |
| Series Saturno |
| Saturno 80 Synchro |
| Series Silver |
| Silver 100.4 |
| Silver 100.6 |
| Silver 80 |
| Silver 90 |
| Series Agrofarm |
| Agrofarm 100 Sn.->D14S934WVT5001 |
| Series Agrolux |
| Agrolux 80 Sn.->D13P774AVT1001 |
| Agrolux 90 Sn.->D13P874AVT1001 |
| Series Agroplus |
| Agroplus 100 Sn.->D11S016WVT1001 |
| Agroplus 75 Sn.->D11S764WVT1001 |
| Agroplus 85 Sn.->D11S864WVT1001 |
| Agroplus 95 Sn.->D11S934WVT1001 |
| Hürlimann |
| Series H 345 -> H 355 |
| H 356 |
| H 358 |
| H 466 |
| H 468 |
| H 476 |
| H 478 |
| H 486 Turbo |
| H 488 Turbo |
| H478.4 |
| Series H Club |
| H 358.4 Club |
| H 468.4 Club |
| Series H Elite |
| H 4105 Elite |
| Series H Prestige |
| H 358 Prestige |
| H 468 Prestige |
| H 478 Prestige |
| H 488 Prestige Turbo |
| Series XT |
| XT 908 |
| XT 909 |
| XT 910.4 |
| XT 910.6 |
| Lamborghini |
| Series 573-60 -> 574-60 |
| 573-60 N |
| 574-60 N |
| Series 674-70 -> 874-90 |
| 674-70 |
| 774-80 |
| 874-90 Turbo |
| Series Cross |
| Cross 574-60 |
| Cross 674-70 |
| Series Formula |
| Formula 105 |
| Series Grand Prix |
| Grand Prix 674-70 |
| Grand Prix 774-80 |
| Grand Prix 874-90 Turbo |
| Series Premium |
| Premium 1050 |
| Premium 1060 |
| Premium 850 |
| Series R 4 |
| R 4.95 |
| Same |
| Series Antares |
| Antares 100 |
| Series Centauro |
| Centauro 60 |
| Series Centurion |
| Centurion 75 Special |
| Series Corsaro |
| Corsaro 70 Synchro |
| Series Explorer I |
| Explorer I 55 |
| Explorer I 60 |
| Explorer I 65 |
| Explorer I 70 |
| Explorer I 75 |
| Explorer I 80 |
| Explorer I 90 Turbo |
| Series Explorer II |
| Explorer II 60 |
| Explorer II 70 |
| Explorer II 80 |
| Explorer II 90 Turbo |
| Series Explorer Special |
| Explorer 80 Special Sn.>15000 |
| Series Explorer T-TB |
| Explorer 95T |
| Series Frutteto³ S |
| Frutteto³ S100 ACTIVEDRIVESn.>ZKDP5302W0TS01001 |
| Series Leone |
| Leone 70 |
| Leone 75 |
| Series Saturno |
| Saturno 80 Synchro |
| Series Silver |
| Silver 100.4 |
| Silver 100.6 |
| Silver 80 |
| Silver 90 Reemplazado por: 13543454N 3141530R91 SHP419KR VPJ3111 |
Compatible con 50 modelos
Este repuesto está validado por el fabricante para los siguientes tractores y maquinaria:
DEUTZ-FAHR
- Series Agrofarm Agrofarm 100 Sn.->D14S934WVT5001
- Series Agrolux Agrolux 80 Sn.->D13P774AVT1001
- Series Agrolux Agrolux 90 Sn.->D13P874AVT1001
- Series Agroplus Agroplus 100 Sn.->D11S016WVT1001
- Series Agroplus Agroplus 75 Sn.->D11S764WVT1001
- Series Agroplus Agroplus 85 Sn.->D11S864WVT1001
- Series Agroplus Agroplus 95 Sn.->D11S934WVT1001
Hürlimann
- Series H 345 -> H 355 H 356
- Series H 345 -> H 355 H 358
- Series H 345 -> H 355 H 466
- Series H 345 -> H 355 H 468
- Series H 345 -> H 355 H 476
- Series H 345 -> H 355 H 478
- Series H 345 -> H 355 H 486 Turbo
- Series H 345 -> H 355 H 488 Turbo
- Series H 345 -> H 355 H478.4
- Series H Club H 358.4 Club
- Series H Club H 468.4 Club
- Series H Elite H 4105 Elite
- Series H Prestige H 358 Prestige
- Series H Prestige H 468 Prestige
- Series H Prestige H 478 Prestige
- Series H Prestige H 488 Prestige Turbo
- Series XT XT 908
- Series XT XT 909
- Series XT XT 910.4
- Series XT XT 910.6
Lamborghini
- Series 573-60 -> 574-60 573-60 N
- Series 573-60 -> 574-60 574-60 N
- Series 674-70 -> 874-90 674-70
- Series 674-70 -> 874-90 774-80
- Series 674-70 -> 874-90 874-90 Turbo
- Series Cross Cross 574-60
- Series Cross Cross 674-70
- Series Formula Formula 105
- Series Grand Prix Grand Prix 674-70
- Series Grand Prix Grand Prix 774-80
- Series Grand Prix Grand Prix 874-90 Turbo
- Series Premium Premium 1050
- Series Premium Premium 1060
- Series Premium Premium 850
- Series R 4 R 4.95
Same
- Series Antares Antares 100
- Series Centauro Centauro 60
- Series Centurion Centurion 75 Special
- Series Corsaro Corsaro 70 Synchro
- Series Explorer I Explorer I 55
- Series Explorer I Explorer I 60
- Series Explorer I Explorer I 65
- Series Explorer I Explorer I 70
